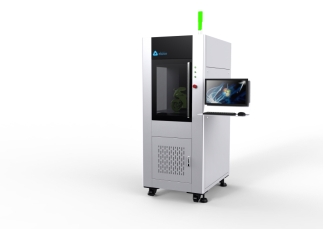

SLA300 technical data

3D printing technology is also called additive manufacturing technology ,based on digital files,through computer design ,to produce objects by stacking up materials,Wuhan DY science and technology is cooperate with a number of medical service organization,with a large number of medical models,guide plate printing test ,specially launched for medical printing equipment SLA300 .With stable performance,accurate and efficient,high integration,small size ,suitable for multi-environment.

model no	SLA300
forming dimension L×W×H(mm)	300×300×300mm
forming accuracy of parts	L＜100mm:±0.1mm L≥100mm:±0.1% x L
Single scan layer thickness	0.05-0.25mm
Laser power	3000mW
Wave length	355nm
Structure of machine	marble base
control system	Integrated industrial machine, humanized design, easy operation, full LCD screen, can observe the printing process in real time
printing software	High integration, unique software architecture, easy operation, one button to continue printing function , professional
power supply environment	200-240VAC,50/60Hz,single phase，rated power500
W×D×H(mm)dimension	700×800×1700
weight	380kg(with 55kg material)

SLA300 version

For medical, education, research SLA 3D printer

Smart place, start here

A good appearance, super stability ,high integration,cost effective SLA300 printer

Machine name:smart-1 3D printer

Process type:SLA uv laser curing molding(355mm)

Printing material:liquid resin,yellow, white, coffee, transparent

Laser Type:355mm uv laser

Layer thickness:0.2-1.2mm

Forming dimension:300mm*300mm*300mm

Equipment dimension:700mm*800mm*1700mm（H）

Equipment advantage

1. Compact structure, multifunctional

Adopt laser industrial equipment design concept, simple and generous appearance, equipment includes light, machine, electricity in one of the intelligent equipment

2. Marble machine, high working accuracy

The machine adopts marble platform and double-direction motion control model to ensure long-term high efficiency and high accuracy

3. High integration ,high stability

Laser and optical scanning system, motion control system integration, stable, efficient

SLA 3D printer system solution
