高速高精密激光切割机

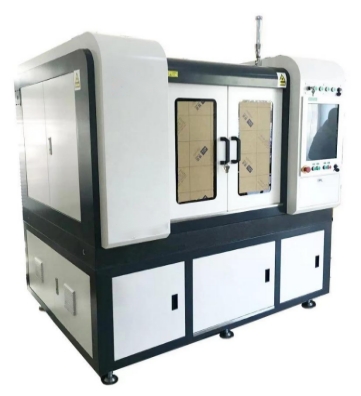

DYGJM6060ZX系列高速高精密激光切割机
DYgjm6060zx series high speed and high precision laser cutting machine
一、设备介绍Product introduction：
※本机型采用国际先进的光纤激光器，光束质量好、体积小、光电转换效率高。长期使用免维护、使用成本低、整机功耗小等优点。
This model adopts international advanced fiber laser, with good beam quality, small volume and high photoelectric conversion efficiency. It has the advantages of long-term maintenance free, low cost and low power consumption.
※采用大理石精密平台，龙门一体式封闭结构，具有良好的刚性、防护性和高速稳定性。
Marble precision platform and gantry integrated closed structure are adopted, which has good rigidity, protection and high-speed stability.
※采用进口磁悬浮式直线电机、0.5um高精密光栅尺和全闭环总线系统，具有完美的切割精度、飞快的加速度和简单易懂的日常维护。
It adopts imported maglev linear motor, 0.5um high-precision grating ruler and full closed-loop bus system, with perfect cutting accuracy, fast acceleration and simple and easy to understand daily maintenance.
※主要用于不锈钢、碳钢、硅（矽）钢、铝合金、钛合金、铜等金属材料高精密切割。
It is mainly used for high-precision cutting of stainless steel, carbon steel, silicon (silicon) steel, aluminum alloy, titanium alloy, copper and other metal materials.
二、产品应用行业Product application industry：
① 3C行业：小型金属薄壳结构件,尤其适合数码产品壳体冲压成形后的2D激光加工。
3C industry: small metal thin shell structural parts, especially suitable for 2D laser processing after stamping of digital product shell.
② 电机产品：电机的定子、转子硅（矽）钢片高精度切割。
Motor products: high precision cutting of silicon (silicon) steel sheets for motor stator and rotor.
③ 汽车轮胎模具：轮胎模具的钢片切割。
Automobile tire mould: cutting of steel sheet of tire mould
④ 金属眼镜行业 ：切割眼镜腿、眼镜框。
Glasses industry: cutting metal glasses legs and spectacle frames.
⑤ 其它行业金属及合金薄板材料的高精密加工。
High precision cutting of metal and alloy sheet materials in other industries
三、技术参数technical parameter：
序号 | 项 目project | 参 数Parameters |
1 | 激光器波长Laser wavelength | 1060-1080nm |
2 | 激光器功率Laser output power | 150W/1000W |
3 | 切割幅面 Max.cutting range | 600*600mm |
4 | X/Y轴重复定位精度 Precision of repeated positioning of X/Y axis | ±5um |
5 | 加工速度 Processing speed | 0-500mm/s |
6 | 最大移动速度 Maximum distance speed | 120m/min |
7 | 最大加速度 Maximum acceleration | 1.5G |
8 | 切割精度Cutting accuracy | ±0.01-0.02mm |
9 | 传动方式 Transmission mode | 进口直线电机+0.5um光栅尺 |
10 | 整机功率(不含风机) Whole machine power (no fan) | ≤7KW |
11 | 整机总重量 Total weight of the whole machine | 约1800KG |
12 | 外观尺寸(长*宽*高)External dimension(length*width*height) | 1800*1430*1900mm （以实物为准） |
五、样品图片Sample picture：
电机硅（矽）钢片 航发软磁合金
精密零件切割
