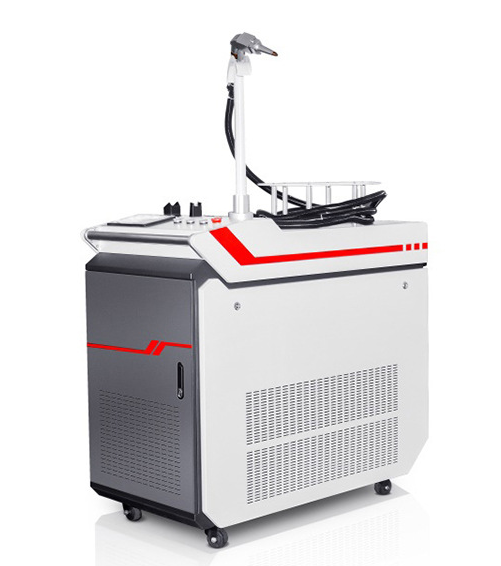

Handheld laser welding machine

Product description

Handheld laser welding machine adopts a new generation of fiber laser, integrated cabinet design, welding head is equipped with up to 10 meters of imported original fiber, flexible and convenient operation, can realize long-distance welding processing of large and heavy workpiece. Suitable for a variety of welding processes, one-time forming, in part of the metal material welding is significantly better than the traditional argon arc welding, electric welding, etc..

Product features

 1, hand-held welding gun, flexible movement, long welding distance, can be omnidirectional welding at any Angle.

2, high standard and high configuration, the new generation of fiber laser, self-research welding head, can be 24h continuous processing.

3, integrated machine design, welding gun with ergonomic design, comfortable to hold, long hold not tired.

4, a variety of welding methods, welding speed, no scar, high welding strength, not easy to cause deformation.

5, high electro-optical conversion rate, high energy efficiency ratio, no pollution, green environmental protection, suitable for industrial production.

Detailed description

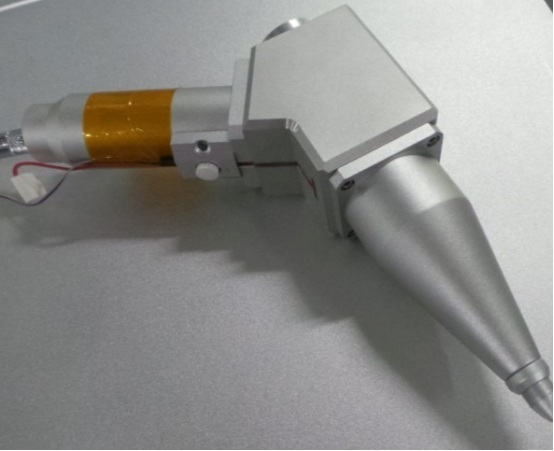

The welding protection gas enters from the tail of the welding joint through the whole welding joint, and comes out of the nozzle in front. The protection gas protects the welding joint and also takes away excess heat to play a cooling role. Automatic light lock after moving parts, high security. Power and device parameters can be adjusted by touching the device screen. Through welding head and red light positioning, to ensure no welding deviation. Beautiful weld, fast speed, no consumables, no discoloration, no late grinding. The hand-held welding head is equipped with 10-meter imported optical fiber, which is flexible and convenient to realize outdoor welding. The operation mode of the hand-held welding gun can weld any part of the workpiece at any Angle. Light shape, body engineering design method, comfortable grip, simple operation and easy to use.

The hand-held welding gun is used to replace the fixed light path, and it is flexible and convenient to weld by hand. The welding distance is longer, and the limitation of the working table space is overcome. It can not be used automatically when the workpiece size is not uniform. Mainly for large workpiece, fixed position such as inside right Angle, outside right Angle, plane weld welding, welding heat affected area is small, small deformation, and welding depth, welding firm. It is a new flexible welding technology for long-distance welding of large workpieces.

Various non-standard metal parts welding, manual welding more flexible;

Perfect welding quality, small deformation, high penetration, no penetration;

A variety of welding process, spot welding, seam welding, overlapping welding, etc.

High welding efficiency, replacing the traditional TIG welding equipment;

The largest welding benefit cost, no consumable energy saving and environmental protection.

Laser: excellent quality, stable and reliable, high electro-optical conversion rate.

Fast welding speed: 5-8 times faster than argon arc welding.

Save time and cost: no scar, no deformation of welding parts.

Various welding methods: support spot welding, welding, overlapping welding, fillet welding, arc welding, irregular welding and so on.

Swing welding mode: adjustable spot width, with better adaptability.

Flexible and convenient processing: hand-held welding, easy to move, wider operating range, more convenient for large, heavy workpiece welding processing.

With the advantages of simple operation, fast welding speed and no consumables, it can weld thin stainless steel plate, iron plate, galvanized plate and other metal materials, which can perfectly replace the traditional argon arc welding, electric welding and other processes.

Fiber laser hand-held welding machine adopts integrated design, compact structure and beautiful appearance, with good beam mode, stable energy, stable performance, reliable use, fast welding speed, wide welding range, long service life of consumables and consumables, etc., widely used.

Hand-held laser welding is widely used in kitchen and bathroom, stairs and elevators, shelves, ovens, stainless steel doors and Windows guardrail, distribution box, stainless steel home and other industries complex irregular welding process; Perfect replacement of traditional argon arc welding, electric welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials welding, welding heat affected area is small, will not lead to workpiece deformation, black, traces on the back of the problem, and the depth of welding, welding firm.

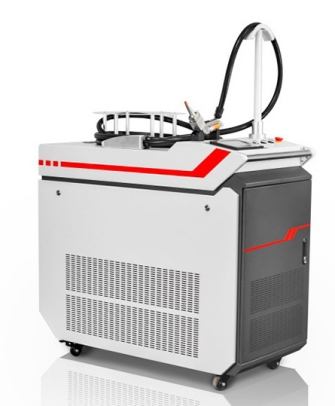

A new generation of integrated cabinet, laser, chiller, software control and other integration, has a small footprint, easy to move, strong functionality and other unique advantages.

Hand-held swing welding head with 5-10 meters of original optical fiber, flexible and convenient.

Hand-held operation mode, equipped with special laser processing head, can realize welding of any part and any Angle of the workpiece.

Matching a variety of laser sources, suitable for a variety of process requirements of the workpiece, welding molding, basically no deformation, meet the requirements of high quality products

Beautiful weld, no welding scar, no discoloration, no subsequent polishing

Welding firm, weld strength to reach or even exceed the base metal itself

Suitable for welding, overlapping welding, internal and external fillet welding, arc welding, irregular shape welding, etc

The whole set of equipment has strong functionality, meets ergonomic design, and is suitable for various working environment scenarios

Proprietary laser safety operation protection function, to ensure the safety of operators during work

The operation is simple and easy to learn, the technical threshold of the operator is not high, and the labor cost is saved.

Applicable field

Widely used in stair elevator, shelves, ovens, stainless steel doors and Windows guardrail, distribution box, stainless steel furniture, kitchen and bathroom hardware, clock shell, medical equipment, auto parts and other industries of metal laser welding.

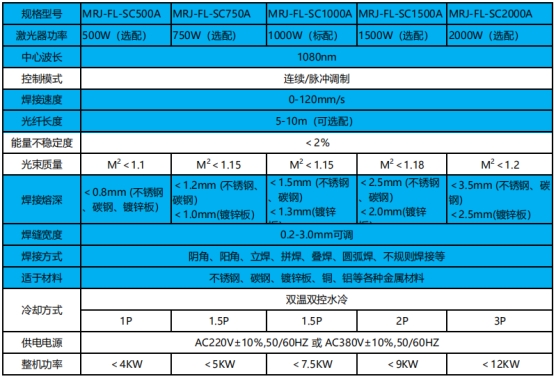

Technical parameters

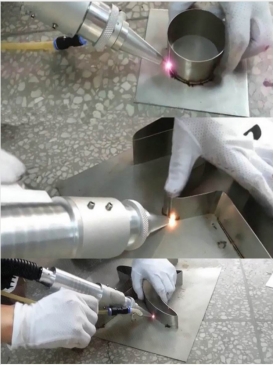

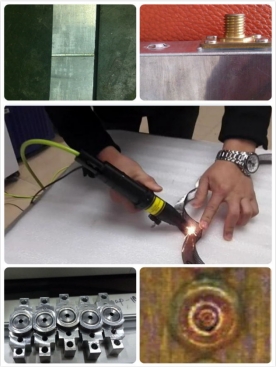

Sample display
