RFL-C series open laser cutting machine

描述：Product descriptionRFL-C series open laser cutting machine with international advanced technology, is the use of laser g···

在线咨询

产品详情

Product description

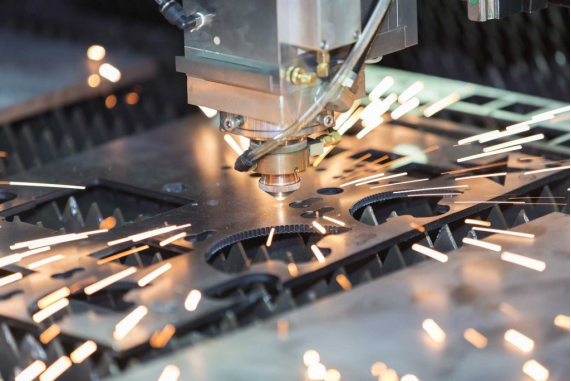

RFL-C series open laser cutting machine with international advanced technology, is the use of laser generated by the intense focus of high-energy laser beam to heat the surface of the material and rapid fusion cut on the material to create a fine slit, cutting quality and speed significantly better than other cutting processes. It adopts double-drive gantry structure, integral welded body and aluminum casting beam, which is a high-tech product integrating laser cutting, precision machinery and CNC technology.

Product features

1、Humanized operating process, concise interface between human-machine interaction, easy automation and intelligence.

2、Equipped with top fiber laser, high-end laser cutting head, imported servo motor, special CNC system.

3、High quality laser beam, precise positioning, narrow cutting seam width, small deformation and less section loss.

4, widely applications, high cutting accuracy, good dynamic performance, fast servo response, high cutting efficiency.

5、High electro-optical conversion rate, low energy consumption, low processing cost, zero pollution for environmental protection, suitable for industrialized production.

Applicable field

Widely used in 3D printing, aerospace, rail transportation, automotive, electronics, communications, photovoltaic, medical, kitchenware bathroom, tool processing, elevator manufacturing, shipbuilding and other industries.

Technical parameters

Model	RFC-3015、RFC-4015、RFC-4020、RFC-6015、RFC-6020
Average laser power	500(W）	750(W）	1000(W）	2000(W）	3000(W）	4000(W）
Max cutting thickness	≤6（mm)	≤10（mm)	≤12（mm)	≤16-18（mm)	≤20（mm)	≤20-25（mm)
Machine power	<14（KW)	<16（KW)	<18（KW)	<28（KW)	<36（KW)	<45（KW)
Effective cutting size	1500X3000/ 1500X4000/ 2000X4000/ 1500X6000/ 2000x6000(mm)
Max cutting speed	13、15、18、28、40、55 （M/min）
X, Y axial positioning accuracy	≤±0.03 （mm/m）
X, Y repeated positioning accuracy	≤±0.02 （mm/m）
Min line width	≤0.10 （mm)
Max cutting speed	60-120 (m/min)
Working voltage	380V/ three phase/50Hz or /60Hz

Marking samples
