high speed and high precision laser cutting machine

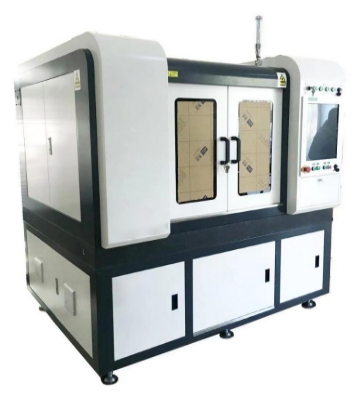

DYgjm6060zx series high speed and high precision laser cutting machine
一、设备介绍Product introduction：
This model adopts international advanced fiber laser, with good beam quality, small volume and high photoelectric conversion efficiency. It has the advantages of long-term maintenance free, low cost and low power consumption.
Marble precision platform and gantry integrated closed structure are adopted, which has good rigidity, protection and high-speed stability.
It adopts imported maglev linear motor, 0.5um high-precision grating ruler and full closed-loop bus system, with perfect cutting accuracy, fast acceleration and simple and easy to understand daily maintenance.
It is mainly used for high-precision cutting of stainless steel, carbon steel, silicon (silicon) steel, aluminum alloy, titanium alloy, copper and other metal materials.
二、Product application industry：
3C industry: small metal thin shell structural parts, especially suitable for 2D laser processing after stamping of digital product shell.
Motor products: high precision cutting of silicon (silicon) steel sheets for motor stator and rotor.
Automobile tire mould: cutting of steel sheet of tire mould
Glasses industry: cutting metal glasses legs and spectacle frames.
High precision cutting of metal and alloy sheet materials in other industries
三、technical parameter：
序号 | 项 目project | 参 数Parameters |
1 | Laser wavelength | 1060-1080nm |
2 | Laser output power | 150W/1000W |
3 | Max.cutting range | 600*600mm |
4 | Precision of repeated positioning of X/Y axis | ±5um |
5 | Processing speed | 0-500mm/s |
6 | Maximum distance speed | 120m/min |
7 | Maximum acceleration | 1.5G |
8 | Cutting accuracy | ±0.01-0.02mm |
9 | Transmission mode | 进口直线电机+0.5um光栅尺 |
10 | Whole machine power (no fan) | ≤7KW |
11 | Total weight of the whole machine | 约1800KG |
12 | External dimension(length*width*height) | 1800*1430*1900mm |
五、Sample picture：
